GENERAL STRIP CURTAIN INSTALLATION
Strip Curtain
Strip Curtain
PVC strip curtains for practical passage and environmental separation in service, kitchen, and commercial openings. Choose Regular clear strips or Magnetic strips with verified component pricing from the Sharp Point Pricelist 2025.
- Configurations
- Regular / Magnetic
- Operation
- Manual Passage
- Application
- Indoor / Outdoor
- Warranty
- 5-Year Component
System Overview
Practical strips. Clear passage.

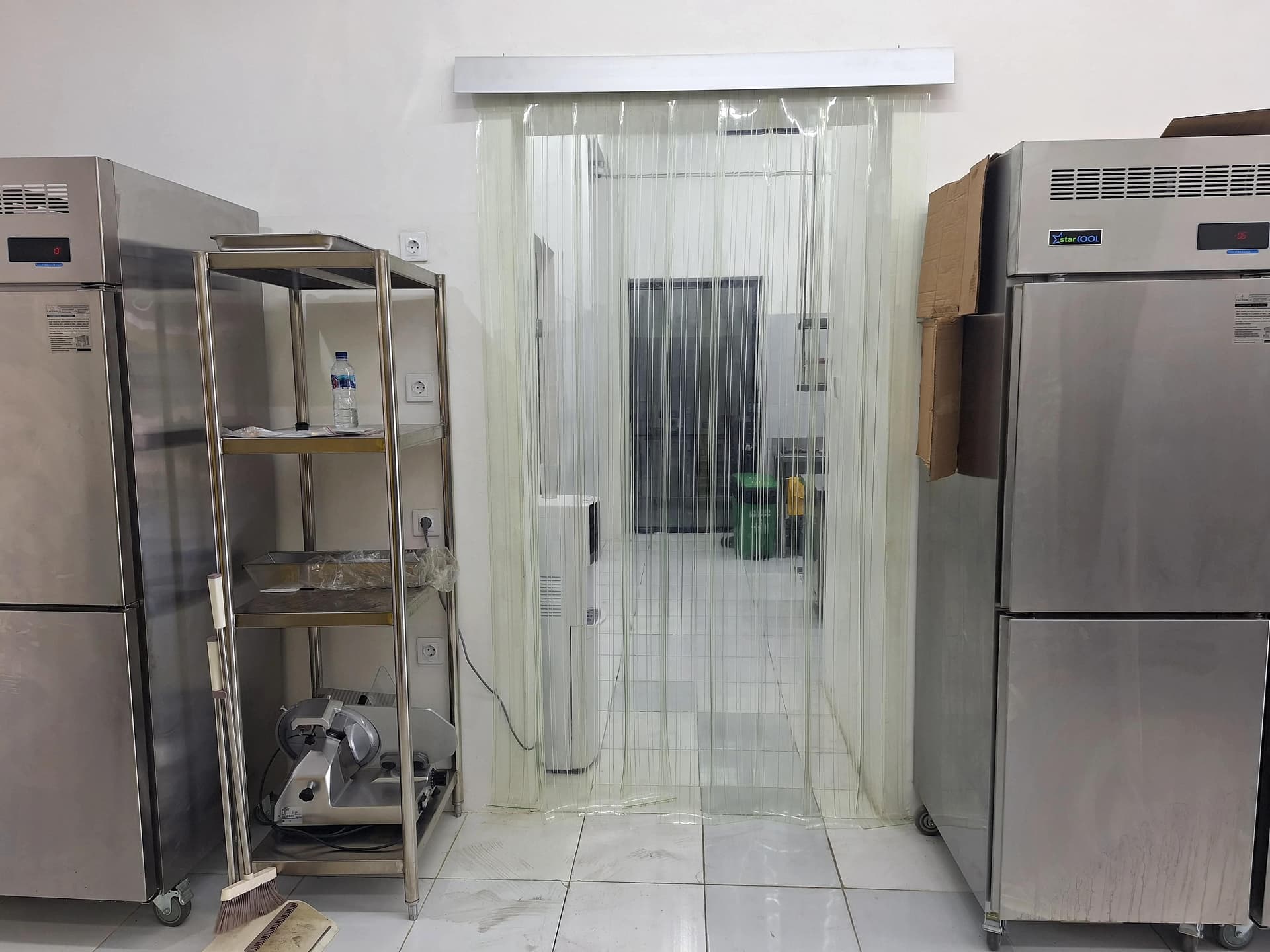

Strip Curtains create practical separation while allowing personnel and equipment to pass through service and commercial openings.
Regular PVC Strip Curtain uses clear 2.5 mm strips on a stainless-steel head-rail system. Magnetic PVC Strip Curtain uses wider magnet-equipped strips for openings that benefit from overlapping magnetic closure.
Final configuration depends on opening width and height, leaf count, traffic pattern, strip overlap, and hanging conditions confirmed during technical review.
Key System Benefits
- Manual passage without powered operation
- Regular and Magnetic PVC configurations
- Verified component pricing from Pricelist 2025
- Suitable for service and commercial openings
- Environmental separation with clear visibility
- Five-year component warranty
Common Applications
- Kitchen and service passages→
- Cold-room and storage separation→
- Commercial back-of-house openings→
- Loading bay and warehouse doors→
- Food preparation areas→
- Industrial work zones→
- Retail service counters→
- Laboratory and clean-zone access→
Variants Selection
Select Strip Curtain configuration
01
PVC Strip Curtain Regular
Clear PVC strips on a stainless-steel head-rail system for standard passage and separation openings.
Regular PVC Strip Curtain suits openings that need clear visibility and straightforward manual passage without magnetic overlap hardware.
Specify this configuration for service corridors, kitchen passages, and commercial zones where 20 cm clear PVC strips and stainless-steel hardware are sufficient.
Published pricing combines width-based hardware with leaf-count and height-based PVC strip material; leaf count must be confirmed during technical review.
Specifications
System Specifications
Summary for PVC Strip Curtain Regular. Full Strip Curtain configuration comparison below.
Strip Material
PVC Clear
Published PVC strip material
Strip Width
20 cm
2.5 mm thickness
Width Hardware
Rp 541.000
Reference hardware subtotal per metre width
PVC Strip
Rp 227.000
Published rate per metre height per leaf
Configurations
2
Regular and Magnetic options
Operation & Configuration
How PVC Strip Curtain Regular is specified and operated.
- Operation
- Manual passage
- Separation Type
- Overlapping PVC strips
- Application
- Indoor / Outdoor service openings
- Leaf Count
- Confirmed during technical review
Indicative Pricing (Incl. PPN)
Component-based pricing for PVC Strip Curtain Regular.
Starting from
Rp 541.000 / m width
PVC strip material: Rp 227.000 / m height per leaf. Assembly: Rp 70.000 / m width.
- Listed component prices include PPN
- Five-year component warranty applies to Strip Curtain structures
- Pricing is calculated from opening width, opening height, and confirmed leaf count
- Leaf count is not auto-derived from strip width until overlap and spacing rules are confirmed
- Assembly is quoted at Rp 70.000 / m lebar when selected
- Bali installation and transport are confirmed separately during quotation
- Complete pricing refers to the strip curtain system components, not verified Bali installation
Strip Materials
Published strip material options for Strip Curtain.
2 configurations
- PVC Clear
- PVC Strip Clear Magnet
Configuration Comparison
Compare Regular and Magnetic PVC Strip Curtain configurations.
| Configuration | Strip Material | Strip Width | Width Hardware | PVC Strip |
|---|---|---|---|---|
| PVC Strip Curtain Regular | PVC Clear | 20 cm | Rp 541.000 / m width | Rp 227.000 / m height |
| PVC Strip Curtain Magnetic | PVC Strip Clear Magnet | 35 cm | Rp 141.000 / m width | Rp 287.000 / m height |
Standard Package
What is included
Per opening configuration for PVC Strip Curtain Regular
- Cover Plate across opening width
- Head Rail Stainless Steel 202 across opening width
- Stainless Steel Clasp 202 per confirmed leaf
- PVC Clear strip material per leaf x opening height
Strip Curtain is configured per opening rather than as a fixed retail package. Component quantities depend on opening width, height, and confirmed leaf count.
Installation and transport are quoted separately according to project location, mounting conditions, and order volume.
Accessories
Available components
Component prices for PVC Strip Curtain Regular
Example Projects
Installed in real openings.
Selected Strip Curtain installations from the SharpPoint archive.
Coming Soon
Installation photography will be added to the archive.
Coming Soon
Installation photography will be added to the archive.
Coming Soon
Installation photography will be added to the archive.
Coming Soon
Installation photography will be added to the archive.
Curtain | PVC Strip Curtain
Ready to specify Strip Curtain?
Share your opening width and height, traffic pattern, preferred Regular or Magnetic configuration, estimated leaf count, and hanging conditions. Our team will help specify Strip Curtain for your project.
